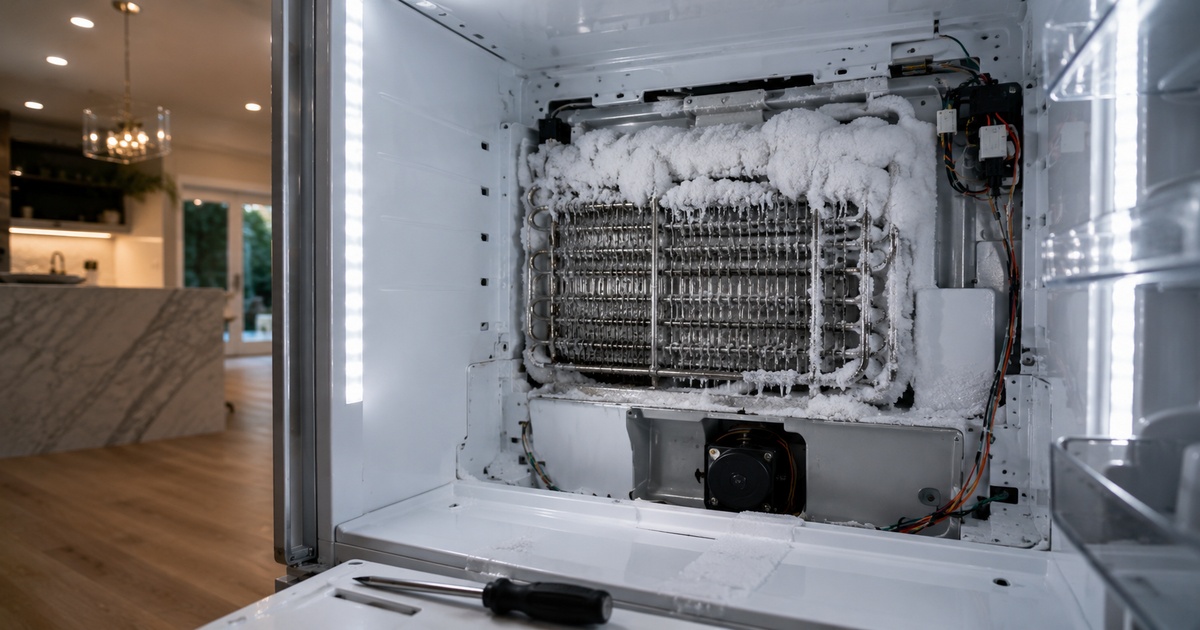

A Sub-Zero that's slowly losing its ability to cool is rarely a compressor problem. Nine times out of ten in the field, it's the defrost system, and the failure mode is deceptive: the fridge keeps working at first, then gradually warms up over a few weeks while a sheet of ice builds quietly on the evaporator coils behind the back panel. By the time the homeowner notices the milk going off a day early, the evaporator is encased and airflow is choked off.
If you own a Sub-Zero in Port Royal, Mediterra, Grey Oaks, Quail West, or anywhere else in Naples, this is the failure you should know about. The repair is straightforward and the math overwhelmingly favors fixing — not replacing — a unit that costs $14,000 to $26,000 new.
How the Sub-Zero Defrost System Actually Works
Every refrigerator has to periodically melt the frost that forms on its evaporator coils. Without defrost, ice would build up, block airflow, and shut the unit down within weeks.
Sub-Zero's system uses three parts working together:
- Defrost timer (or in newer units, the main control board) — schedules defrost cycles every 8 to 12 hours.
- Defrost thermostat (bimetal or thermistor) — clipped to the evaporator coil, monitors coil temperature, tells the heater when to stop.
- Defrost heater coil — a low-wattage element that wraps around or runs through the evaporator fins, gently melts accumulated frost.
When defrost runs, the compressor shuts off, the heater turns on for 18-25 minutes, the melted water drains down into a pan over the compressor where the heat from running evaporates it. The cycle ends, compressor restarts, normal cooling resumes.
Why Sub-Zero Is Different from a Standard Fridge
Where a typical Whirlpool or GE has one evaporator shared between the freezer and fridge, Sub-Zero uses dual evaporators — one dedicated to the freezer compartment, one to the fresh-food compartment. Each has its own defrost circuit. This is the engineering choice that gives Sub-Zero its famous food preservation (no air mixing between compartments, much lower humidity loss in the fridge side), but it also means there are twice as many components that can fail.
In 600-series side-by-sides and 700-series built-ins, the fresh-food evaporator is the more common failure point because it runs more frequent, shorter defrost cycles. In PRO 48 and PRO 36 units, the freezer evaporator goes first more often, especially in homes that run them hard.
The Failure Signs (Subtle Until They Aren't)
Watch for these in order — they appear gradually:
1. Slightly warm fresh-food section — milk goes from 36°F to 41°F. Easy to miss. 2. Water pooling in the bottom drawer or crisper — the defrost drain pan is overflowing because the drain line is blocked by ice. 3. Ice or frost visible on the back wall of the fresh-food compartment — this is the evaporator showing through. 4. A humming or rushing sound that's louder than usual — the evaporator fan is struggling against an iced-over coil. 5. The freezer is fine but the fridge keeps warming — classic dual-evaporator defrost failure on the fresh-food side.
If any of these are happening, the longer you wait, the more ice builds up, and the more time the eventual repair takes. A unit that's been failing for two months may need an 8-hour manual thaw before the tech can even diagnose properly.
More broadly, these are the signs that mean it's time to call a pro on any fridge — most apply doubly to Sub-Zero because of how subtle the early warnings are.
The Three Failure Modes and What They Cost
In Naples specifically — where parts availability for Sub-Zero is generally good thanks to a strong local dealer network — here's what each repair runs in 2026 dollars, parts and labor included:
Failure 1: Defrost Timer / Control Board Fault
Older Sub-Zero units (pre-2008, models 532, 550, 561, 642) use a mechanical defrost timer that wears out. Newer units (600 series 2010+, 700 series, PRO series) integrate defrost scheduling into the main control board.
- Cost — older mechanical timer: $150-$280
- Cost — newer control board: $480-$950 depending on model
- Diagnostic time: 30-45 minutes
- Repair time: 60-90 minutes
This is the cheapest of the three failures to fix, and the easiest to confuse with the other two. A good tech will measure timer cycling before swapping anything.
Failure 2: Defrost Thermostat
The bimetal thermostat clipped to the evaporator coil opens too early (heater shuts off before frost is melted) or stays closed too long (causing thermal stress). Either way, the result is incomplete defrost cycles and gradual ice buildup.
- Cost: $180-$320 parts and labor
- Diagnostic time: 45 minutes (ohm-meter test with the unit at temp)
- Repair time: 90 minutes, including coil access
This is the most common defrost failure on 600-series Sub-Zeros I see in Naples — roughly half of all defrost repairs.
Failure 3: Defrost Heater
The heating coil itself burns open. When this happens, defrost cycles run on schedule but produce no heat, and the evaporator ices over rapidly — sometimes complete blockage within 7-14 days.
- Cost: $250-$450 parts and labor
- Diagnostic time: 30 minutes
- Repair time: 2-3 hours (the evaporator has to be partially disassembled to replace the heater, and on tightly built-in units, the cabinet may need to be pulled forward)
Less common than thermostat failure but more dramatic when it happens.
Per-Series Notes
600 Series (Side-by-Side and Bottom-Freezer)
Most forgiving to service. The back panel comes off cleanly, evaporator access is good, parts are widely stocked. Defrost thermostat is the usual culprit. Average repair total: $320-$520.
700 Series (Built-In Over-and-Under)
More complex because of the dual-compressor architecture and tighter cabinet integration. The unit usually has to be pulled forward from its built-in slot before back-panel access. Average repair total: $450-$680.
PRO 48 / PRO 36 (Pro Series)
The most labor-intensive. The PRO units have a different evaporator geometry and the defrost heater is integrated into the coil fins rather than clipped on. Heater replacement on a PRO can run a full half-day. Average repair total: $650-$1,100.
On all three series, a Sub-Zero tech who's worked the brand for ten-plus years can usually identify which of the three failure modes you have within fifteen minutes of opening the back panel.
DIY Safety Warning
This is where I have to be direct: Sub-Zero defrost work is not a DIY job, and it's not because the parts are unusual. It's because:
- The cabinet is tightly fitted into custom cabinetry and pulling it forward incorrectly can damage your $40,000 kitchen.
- Refrigerant lines run close to the evaporator. A slip with a screwdriver can puncture a line and turn a $400 repair into a $2,800 sealed-system rebuild.
- The defrost heater is a 120V circuit — testing it live without proper meters is a real electrocution risk.
- Improper reassembly will cause repeat icing within a month, and the second visit costs the same as the first.
The right call is a tech who works Sub-Zero regularly. Sub-Zero certifies dealers and service partners specifically for this reason.
The Cost-vs-Replace Math (It's Not Close)
A new Sub-Zero 648PRO with a similar configuration to a 15-year-old unit you'd repair runs $22,000-$28,000 installed in Naples, including cabinet refit if dimensions changed. A full kitchen tear-out and cabinet modification can push the total project past $40,000.
A worst-case defrost repair on that same unit: $1,100.
That's a 25-to-40x cost ratio in favor of repair. Sub-Zero deliberately engineers their units for 20-30 year service life with periodic component replacement. The compressor is sealed for the long haul; everything else — defrost components, fan motors, gaskets, lights — is meant to be serviced over time.
This is the same conversation we have with owners in the repair-vs-replace question — and with Sub-Zero specifically, the answer is almost always repair unless the sealed system has failed. And before assuming the worst, knowing why a Sub-Zero stops cooling helps separate defrost issues from compressor issues — they look similar but cost wildly different to address.
Call AllFix for Sub-Zero Service in Naples
We service all Sub-Zero series — 200, 300, 500, 600, 700, PRO, and the integrated 7000 line. Diagnostic visits start at $189, applied toward repair. Most defrost repairs are one-visit jobs because we carry the common heaters, thermostats, and timers on the truck.
Naples, Marco Island, Bonita Springs, Estero, Fort Myers, Cape Coral, and Pelican Bay. Call (239) 544-4666 or book online for next-day service.
